User Interface

With this namespace, you can quickly provide methods to show UI.

The namespace User Interface provides to developers, methods to easily show or validate data.

//accessing to ui methods
SW.UI.{methodName}

---

editComponentsOptionInBulk

Description

This method can be used to edit an option in various components.

Method(s)

1    function editComponentsOptionInBulk(components: any[], option: string, value: any): void

Parameter	Type	Required	Defaults	Description
components	any[]	true		Components array to edit option
option	string	true		Option to edit
value	any	true		New option value

Basic Usage

SW.UI.editComponentsOptionInBulk([dataGrid, chart], "dataSource", data);

Response

It will set dataGrid and chart dataSources with the variable data passed.

---

getEntityImage

Description

This method can be used to get entities image.

Method(s)

1    function getEntityImage(element: HTMLElement, documentName: string,
2       params?: {
3           size?: Size;
            hideName?: boolean;
            title?: string;
4       } = {
5          size: Size.SMALL,
            hideName: false,
            title: null
6       }
7   ): string;

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
documentName	string	true		Type of document
size	Size	false	"small"	Image's size to be displayed(small, medium, large)
hideName	boolean	false	false	Show or hide the name of the field
Title	string	false	false	The name displayed in the UI

Basic Usage

SW.UI.getEntityImage(element, "job", { size: "large" });

Response

Returns the passed HTML element with the entity job image.

---

setAttribute

Description

This method can be used to set element's attributes.

Method(s)

1    function setAttribute(element: HTMLElement, attribute: string, attributeValue: string,
2       params: {
3           text?: string;
4           createContainer?: boolean
5       } = {
6           createContainer: true
7       }
8   ): HTMLElement

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
attribute	string	true		Attribute to update
attributeValue	string	true		Value to update attribute
text	string	false		Inner HTML
createContainer	boolean	false		Create a new div container

Basic Usage

SW.UI.setAttribute(element, "style", "display: contents");

Response

It will add the attribute value to the given attribute.

---

setConditionalColor

Description

This method can be used to set element's attributes.

Method(s)

1   function setConditionalColor(element: HTMLElement, value: string, conditions: boolean[], colors: string[],
2       params: {
3           createContainer?: boolean;
4           bold?: boolean;
5           italic?: boolean
6       } = {
7           createContainer: true
8       }
9   ): void

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
value	string	true		Value to show
conditions	boolean[]	true		Conditions to check
colors	string[]	true		Colors for conditions
createContainer	boolean	false	true	Create a new div container
bold	boolean	false		Bold font
italic	boolean	false		Italic font

Basic Usage

SW.UI.setConditionalColor(element, 'Value', [1>0, 1=0, 1<0], ['Red', 'Green', 'Blue']);

Response

It will add the value text to the element with the background color corresponding to the condition that is true.

---

setRag

Description

This method allows you to set an element as Red, Ambar or Green according to its value.

Method(s)

1   function setRag(element: any, value: string,
2           red: boolean,
3           ambar: boolean,
4           green: boolean,
5           params: { createContainer?: boolean } = { createContainer: true }
6   ): string;

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
value	string	true		Value to show
red	boolean	true		return the value with background color in red
ambar	boolean	true		return the value with the background color in ambar
green	boolean	true		return the value with the background color in green
createContainer	boolean	false	true	Create a new div container

Basic Usage

SW.setRAG(e, value, i.value > 15, i.value >= 5 && i.value < 15, i.value < 5);

Response

It will add the value text to the element with the background color corresponding to the condition that is true.

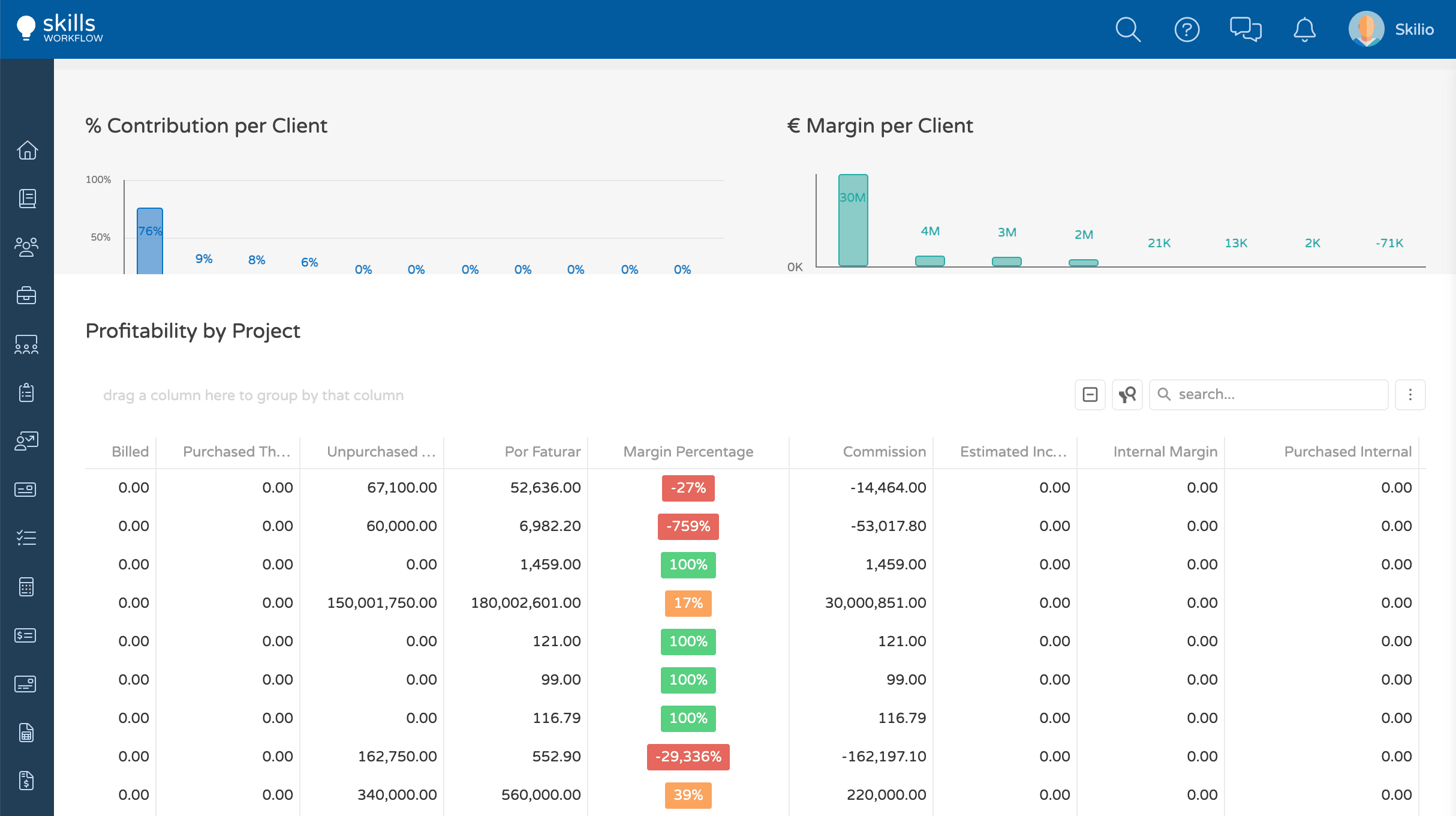

Example

{
    dataField: "MarginPercentage",
    dataType: "number",
    alignment: "center",
    format: "percent",
    width: 120,
    cellTemplate: function(e, i) {
        SW.UI.setRag(e, i.text, i.value < 0.01, i.value >= 0.01 && i.value < 0.99, i.value >= 0.99);
    }
},

---

setVersionRag

Description

This method can be used to set rag considering two given versions.

Method(s)

1   function setVersionRag(element: HTMLElement, version1: number, version2: number,
2       params: {
3           createContainer?: boolean
4       } = {
5           createContainer: true
6       }
7   ): void

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
version1	number	true		Version number
version2	number	true		Version number
createContainer	boolean	false	true	Create a new div container

Basic Usage

SW.UI.setVersionRag(element, 1, 2);

Response

---

showComponent

Description

This method can be used to create a new component.

Method(s)

1    function showComponent(element: HTMLElement, type: string, properties: object): void;

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML tag
type	string	true		Component's type
properties	object	true		Component's properties

Basic Usage

SW.UI.showComponent(element, "List", properties);

Example

In the following example you can find a template for an item that will present a List of items:

function itemTemplate(itemData, itemIndex, itemElement, workspaceContext) {
  var properties = {
    items: [
      { id: 1, value: "Blue" },
      { id: 2, value: "Red" },
    ],
  };
  SW.UI.showComponent(itemElement, "List", properties);
}

---

showImage

Description

This method can be used to display an existing or default Image.

Method(s)

1   function showImage(element: HTMLElement, documentName: "user" | "client" | "company", name: string,
2       params: {
3           hasImage?: boolean;
4           size?: Size;
5           id?: string;
6           showName: boolean
7       } = {
8           hasImage: false,
9           size: Size.SMALL,
10          showName: false
11      }
12   ): HTMLElement

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
documentName	string	true		Document type ("user", "client", "company")
name	string	true		Document name
hasImage	boolean	false		A flag to specify if target already has an image
size	Size	false		Image size
id	string	false		Document id
showName	boolean	false		Show document name

Basic Usage

SW.UI.showImage(element, "company", "Skills Workflow", {
  hasImage: true,
  id: "companyId",
});

Response

---

showImageEditor

Description

This method can be used to update a user, client or company image.

Method(s)

1    function showImageEditor(element: HTMLElement, documentName: "user" | "client" | "company", documentId: string,
2       params: {
3           endpoint?: string;
4           size?: Size;
5           width?: number;
6           height?: number;
7           imageStyle?: string;
8       } = {
9           size: Size.LARGE,
10          width: 100,
11          height: 100
12      }
13  ): HTMLElement

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
documentName	string	true		Image from document user, client or company
documentId	string	true		Document id
endpoint	string	false		Image's endpoint
size	Size	false	large	Image's size to be displayed(small, medium, large)
width	number	false	100	Container width in pixels
height	number	false	100	Container height in pixels
imageStyle	string	false		Setting height & width in string format

Basic Usage

SW.UI.showImageEditor(element, "company", "companyId");

Response

It will add the document image with an event listener 'change' to change it.

---

showPriority

Description

This method can be used to define an element priority.

Method(s)

1    function showPriority(element: HTMLElement, priorityValue: number): void;

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
priorityValue	number	false		Define element's priority

Basic Usage

SW.UI.showPrioruty(element, 1);

Response

---

showStage

Description

This method can be used to display a stage.

Method(s)

1   function showStage(element: HTMLElement, name: string, color: string,
2       params: {
3           grouping?: boolean;
4           groupCount?: number
5       } = {}
6   ): void

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
name	string	false		Stage name
color	string	false		Element's color
grouping	boolean	false		A flag to define if target is grouped
groupCount	number	false		Set the number of elements to group

Basic Usage

SW.UI.showStage(element, "Test", "blue");

Response

---

showTags

Description

This method can be used to display tags.

Method(s)

1    function showTags(element: HTMLElement, tags: string = null): void;

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
tags	string	false		Tags to show

Basic Usage

SW.UI.showTags(element, "{Label: Skills, Color: #333}");

Response

---

showTeam

Description

This method can be used to display teams.

Method(s)

1   function showTeam(
2       element: HTMLElement,
3       data: any,
4       idsFieldName: string,
5       namesFieldName: string,
6       hasImageFieldName: string,
7       params: {
8           size?: Size
9       } = {
10          size: Size.SMALL
11      }
12  ): void

Parameter	Type	Required	Defaults	Description
element	HTMLElement	true		HTML element
data	any	true		A set of data
idsFieldName	string	true		Users identifier
namesFieldName	string	true		Users name
hasImageFieldName	string	true		Flag if executers have images
size	Size	false	small	Image's size

Basic Usage

SW.UI.showTeam(element, data, "UserIds", "UserNames", "UserHasImages", {
  size: "large",
});

Response

This method will add the user images to the given element..

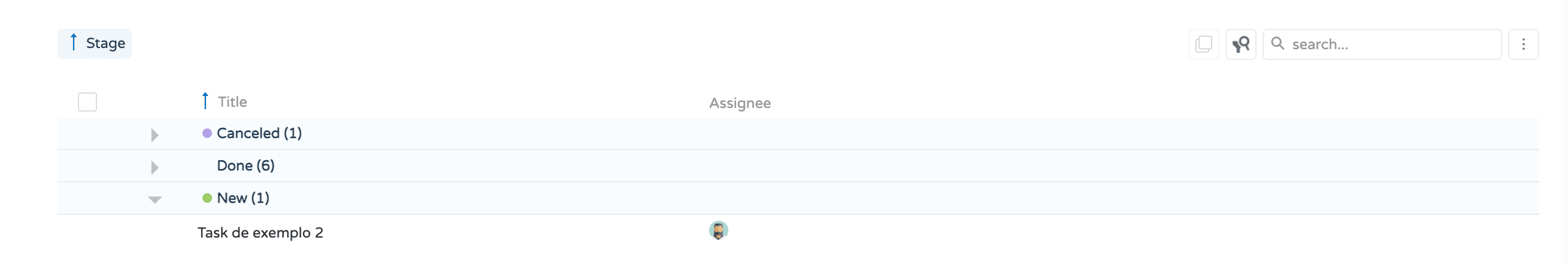

Example

{
        dataField: "ExecutorNames",
        caption: "Assignee",
        dataType: "string",
        allowEditing: false,
        visible: true,
        cellTemplate: function cellTemplate(e, i) {
            if (i.data && i.data.ExecutorNames) {
                SW.UI.showTeam(e, i, 'ExecutorIds', 'ExecutorNames', 'ExecutorHasImages', { size: 'small' })
             }
        }
},

---

showWorkload

Description

This method can be used to display assignments workload.

Method(s)

1    function showWorkload(element: string | HTMLElement, assignmentId: string): Promise<void>

Parameter	Type	Required	Defaults	Description
element	string | HTMLElement	true		HTML element or string
assignmentId	string	true		Assignment id

Basic Usage

SW.UI.showWorkload(element, "assignmentId");

Response
