Custom Tables

Overview

Custom Tables allow you to extend the Skills Workflow data model by creating your own tables with custom columns and data types. They are ideal for storing additional structured data that does not fit into standard document fields — for example, product catalogs, specification mappings, or lookup tables.

Custom tables support:

• Custom schema — define your own columns with specific data types
• Role-based permissions — control who can read and who can write
• Full CRUD — create, read, update, and delete via the UI, SDK, or API
• Query integration — read data using SQL queries with the CustomTable namespace
• Import / Export — bulk data management via JSON files

---

Navigating to Custom Tables

1. Go to Maintenance in the main menu
2. Select the Custom Tables module

You will see a list of all existing custom tables in the system.

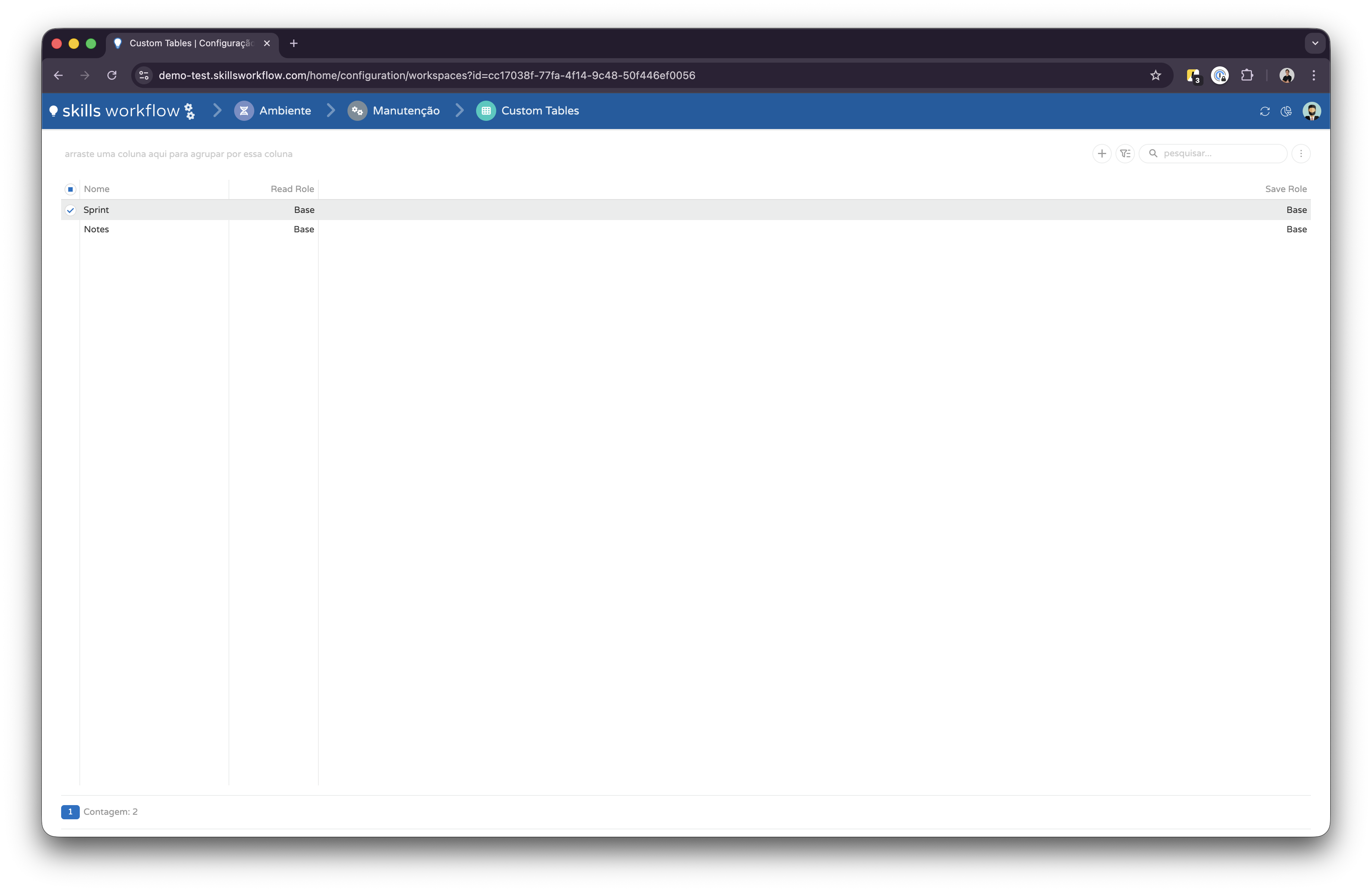

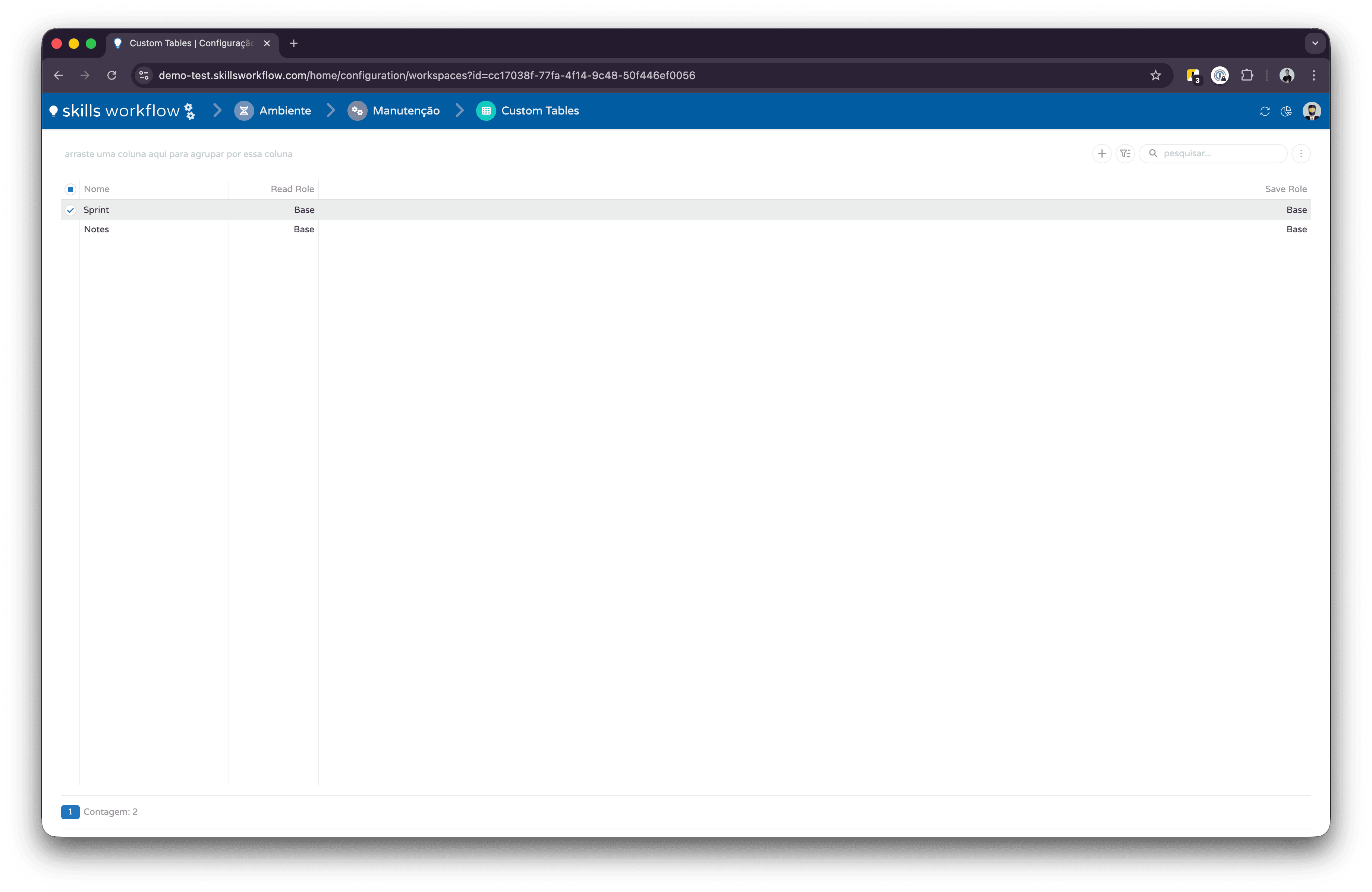

Custom Tables list in Maintenance

---

Creating a Custom Table

To create a new custom table:

1. Click the + button in the Custom Tables list
2. Enter the Table Name (must be unique, no spaces — use PascalCase, e.g. ProductCatalog)
3. Define the Key Column — typically Oid with data type UniqueIdentifier (GUID)
4. Add Columns with their names and data types

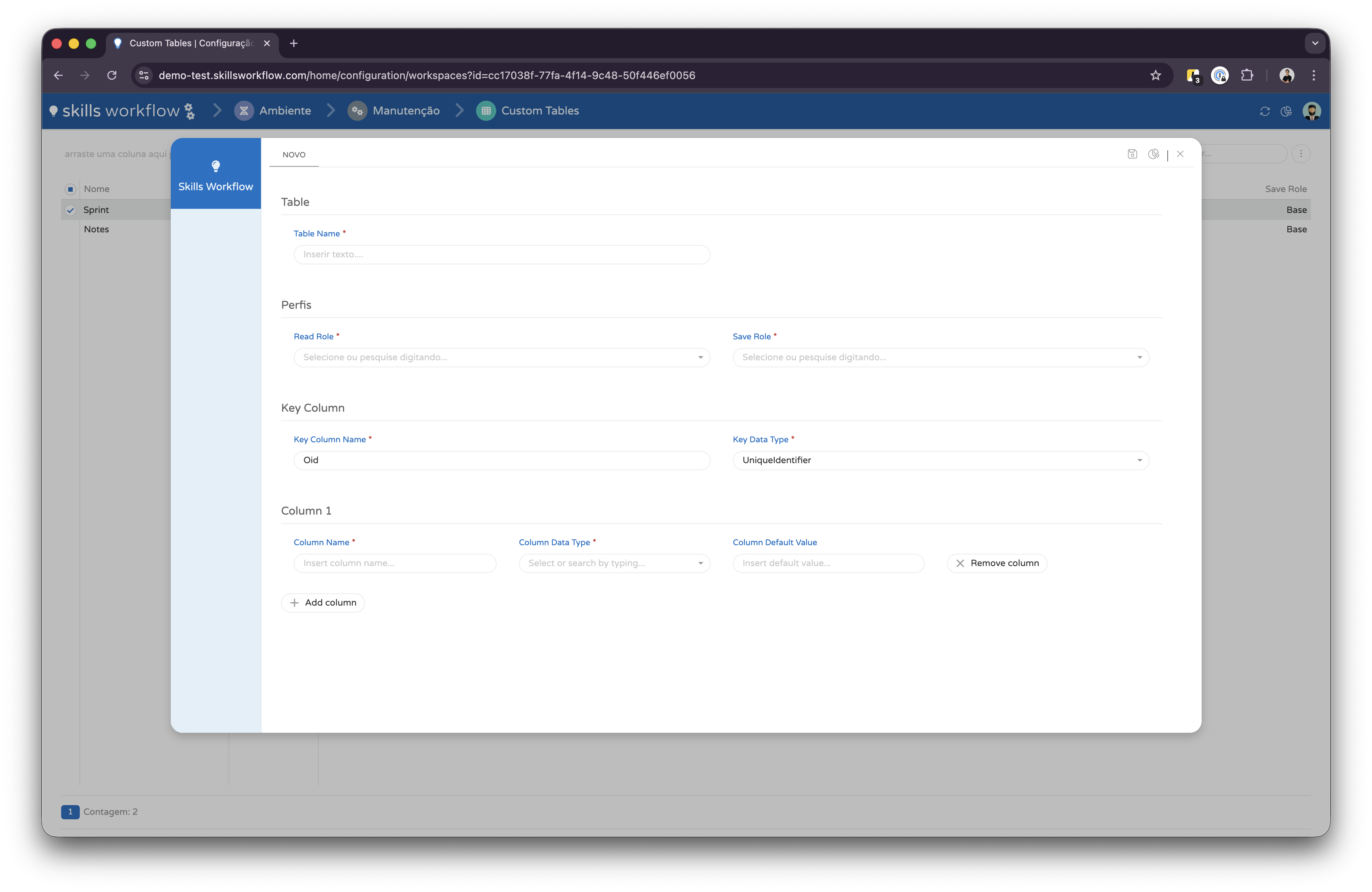

Creating a new custom table

note

Column names should use PascalCase (e.g. ProductName, IsActive). Once a column is created, its data type cannot be changed — only new columns can be added.

---

Managing Permissions

Each custom table has two permission roles:

• Read Role — determines which users can read data from the table
• Save Role — determines which users can insert, update, or delete data

To configure permissions:

1. Select a custom table from the list
2. In the Permissions panel, set the Read Role and Save Role
3. Click Save

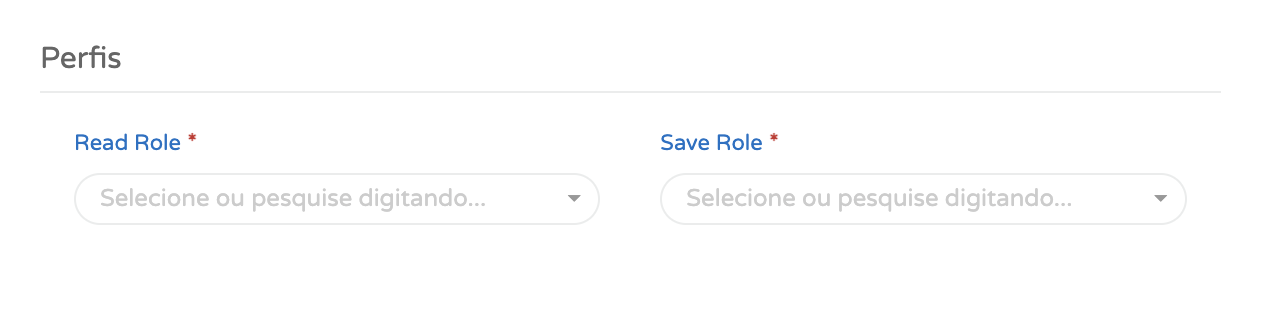

Configuring Read and Save roles

---

Viewing Data

After selecting a custom table, the data grid displays all stored rows with their column values.

The grid shows:

• The key column (e.g. Oid)
• All custom columns and their current values
• A row count at the bottom

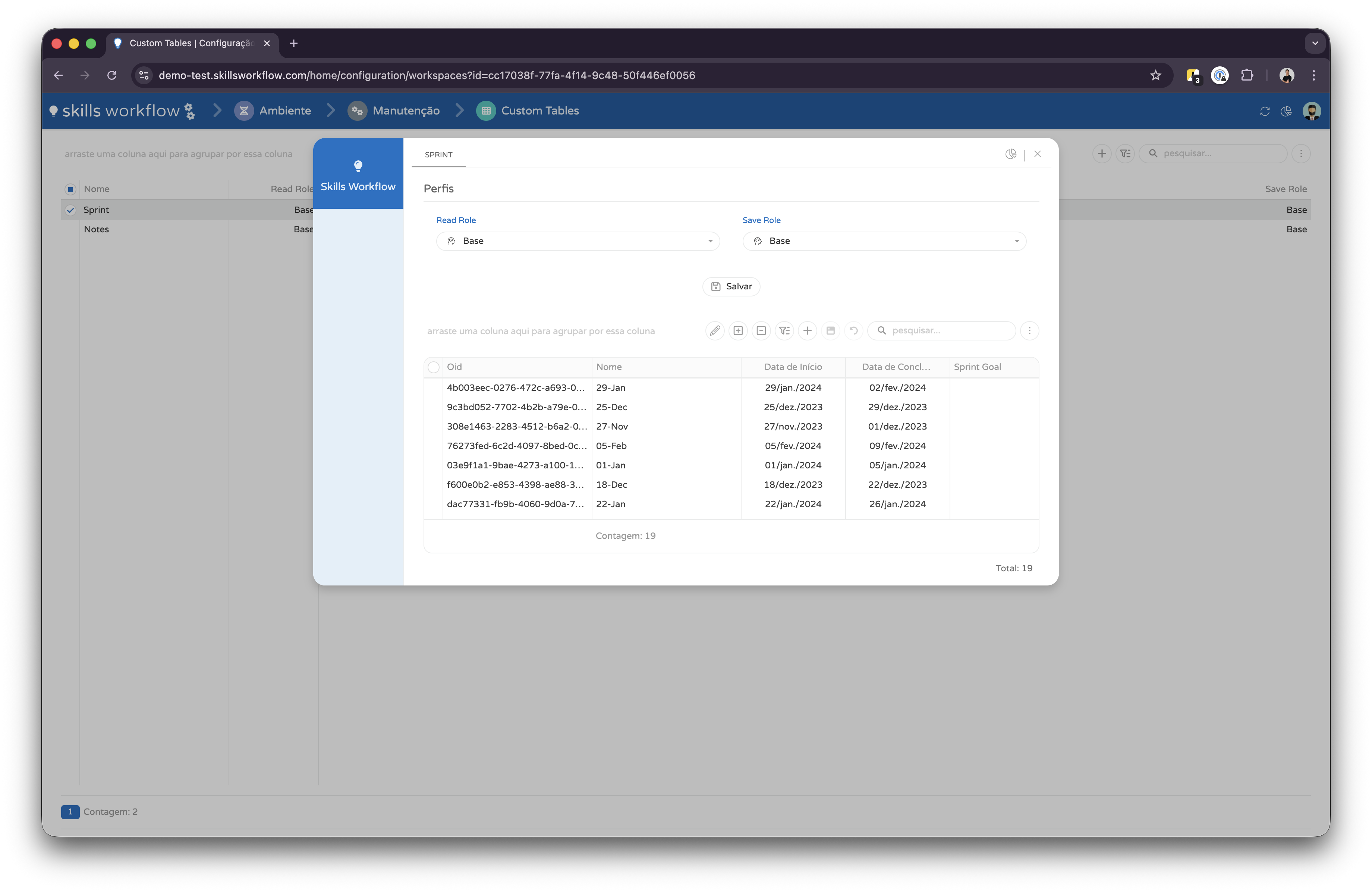

Custom table data grid

---

Reading Data via Queries

To read custom table data using SQL queries:

1. Navigate to Maintenance → Queries
2. Create or edit a query
3. Set the Namespace to CustomTable
4. Write your SQL referencing the table as [customtables].[YourTableName]

Example:

SELECT Oid, Name, Price, IsActive
FROM [customtables].[ProductCatalog]
WHERE IsActive = 1
ORDER BY Name

note

The CustomTable namespace is required for the query engine to resolve custom table references at runtime. Without it, the query will not find your tables.

---

SDK Reference

Use the SDK methods below to interact with custom tables programmatically from workspaces, automations, or any JavaScript context inside Skills Workflow.

Namespace: SW.Document.CustomTable

View SDK Methods

get

Description

Fetches all rows from a custom table and returns them as flat JavaScript objects (column names as keys). Optionally sorts the result by a column on the client side.

Method(s)

declare function get(
    customTableName: string,
    orderByColumnName?: string
): Promise<object[]>

Parameter	Type	Required	Defaults	Description
customTableName	string	true		Name of the custom table
orderByColumnName	string	false	null	Column name to sort the results by (client-side)

Basic Usage

// Get all rows from the "ProductCatalog" table
const rows = await SW.Document.CustomTable.get("ProductCatalog");

// Get rows sorted by "Name"
const sorted = await SW.Document.CustomTable.get("ProductCatalog", "Name");

---

create

Description

Creates a new custom table definition, or adds columns to an existing table. Defines the key column and the schema (column names and data types).

Method(s)

declare function create(
    customTableName: string,
    model: CustomTablePostModel
): Promise<any>

Parameter	Type	Required	Defaults	Description
customTableName	string	true		Name of the custom table to create
model	CustomTablePostModel	true		Table definition including key column and columns

CustomTablePostModel

Property	Type	Required	Description
KeyColumnName	string	true	Name of the primary key column (e.g. "Oid")
KeyDataTypeId	number	false	Data type of the key column (see Data Types table below)
Columns	CustomTableColumnPostModel[]	true	Array of column definitions

Basic Usage

await SW.Document.CustomTable.create("ProductCatalog", {
    KeyColumnName: "Oid",
    KeyDataTypeId: 9, // UniqueIdentifier
    Columns: [
        { ColumnName: "Name", ColumnDataTypeId: 6 },       // Varchar100
        { ColumnName: "Price", ColumnDataTypeId: 4 },       // Money
        { ColumnName: "IsActive", ColumnDataTypeId: 0 },    // Boolean
    ]
});

---

insert

Description

Inserts or updates one or more rows in a custom table. Accepts a single row or an array of rows. Each row defines its key and column values.

Method(s)

declare function insert(
    customTableName: string,
    rows: CustomTableRowPostModel | CustomTableRowPostModel[]
): Promise<any[]>

Parameter	Type	Required	Defaults	Description
customTableName	string	true		Name of the custom table
rows	CustomTableRowPostModel | CustomTableRowPostModel[]	true		One row or an array of rows to insert/update

CustomTableRowPostModel

Property	Type	Required	Description
KeyValue	any	false	Value of the key column for this row (e.g. a GUID)
KeyColumnName	string	false	Name of the key column (e.g. "Oid")
Columns	CustomTableRowColumnPostModel[]	true	Array of column name/value pairs for this row

CustomTableRowColumnPostModel

Property	Type	Required	Description
ColumnName	string	true	Column name
ColumnDataTypeId	number	false	Data type ID (see Data Types table)
Value	any	true	The value to store

Basic Usage

// Insert a single row
await SW.Document.CustomTable.insert("ProductCatalog", {
    KeyValue: SW.Utils.Guid.getNew(),
    KeyColumnName: "Oid",
    Columns: [
        { ColumnName: "Name", ColumnDataTypeId: 6, Value: "Widget A" },
        { ColumnName: "Price", ColumnDataTypeId: 4, Value: 29.99 },
        { ColumnName: "IsActive", ColumnDataTypeId: 0, Value: true },
    ]
});

// Insert multiple rows at once
await SW.Document.CustomTable.insert("ProductCatalog", [
    {
        KeyValue: SW.Utils.Guid.getNew(),
        KeyColumnName: "Oid",
        Columns: [
            { ColumnName: "Name", Value: "Widget A" },
            { ColumnName: "Price", Value: 29.99 },
        ]
    },
    {
        KeyValue: SW.Utils.Guid.getNew(),
        KeyColumnName: "Oid",
        Columns: [
            { ColumnName: "Name", Value: "Widget B" },
            { ColumnName: "Price", Value: 49.99 },
        ]
    }
]);

---

Data Types Reference

Each column has a ColumnDataTypeId that defines the SQL data type used for storage.

ID	Type	Description
0	Boolean	True / False
1	Date	Date value
2	Float	Decimal number
3	Integer	Whole number
4	Money	Currency value
5	Varchar50	Text (max 50 chars)
6	Varchar100	Text (max 100 chars)
7	VarcharMax	Text (unlimited)
8	Text	Large text
9	UniqueIdentifier	GUID / UUID
10	Varchar200	Text (max 200 chars)

---

API Reference

For external integrations or direct HTTP calls, use the REST API endpoints below.

View API Endpoints

All endpoints require authentication via the X-AccessToken header.

Base path: api/v3

Endpoints

Method	Route	Description
GET	/custom-tables	List all custom tables
GET	/custom-tables/{tableName}	Get table schema and columns
GET	/custom-tables/{tableName}/rows/values	Get all rows with column values
GET	/custom-tables/{tableName}/row	Get a single row by key
GET	/custom-tables/{tableName}/rows/columnValue	Get a specific column value from a row
POST	/custom-tables/{tableName}	Create table / add columns
PUT	/custom-tables/{tableName}/rows	Insert or update rows
PUT	/custom-table-definitions/{id}	Update table permissions (Read/Save roles)
DELETE	/custom-tables/{tableName}/rows	Delete rows
DELETE	/custom-tables/{tableName}	Drop the entire table
GET	/custom-tables/{tableName}/export	Export table to JSON file
PUT	/custom-tables/{tableName}/import	Import table from JSON file

---

Insert / Update Rows

PUT /api/v3/custom-tables/{tableName}/rows

The request body uses OperationType to control the behavior:

OperationType	Value	Description
Update	0	Update a single row
UpdateMany	1	Insert or update multiple rows (batch)
UpsertMany	2	Insert if not exists, update if exists (batch)

Single row (Update)

{
    "OperationType": "Update",
    "UpdateModel": {
        "KeyColumnName": "Oid",
        "KeyValue": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
        "KeyDataTypeId": 9,
        "Columns": [
            { "ColumnName": "Name", "Value": "Updated Product" },
            { "ColumnName": "Price", "Value": 39.99 }
        ]
    }
}

Multiple rows (UpdateMany)

{
    "OperationType": "UpdateMany",
    "UpdateManyModel": [
        {
            "KeyColumnName": "Oid",
            "KeyValue": "a1b2c3d4-0000-0000-0000-000000000001",
            "KeyDataTypeId": 9,
            "Columns": [
                { "ColumnName": "Name", "Value": "Product A" },
                { "ColumnName": "Category", "Value": "Electronics" }
            ]
        },
        {
            "KeyColumnName": "Oid",
            "KeyValue": "a1b2c3d4-0000-0000-0000-000000000002",
            "KeyDataTypeId": 9,
            "Columns": [
                { "ColumnName": "Name", "Value": "Product B" },
                { "ColumnName": "Category", "Value": "Furniture" }
            ]
        }
    ]
}

---

Delete Rows

DELETE /api/v3/custom-tables/{tableName}/rows

OperationType	Value	Description
Delete	0	Delete a single row by key
DeleteAll	1	Delete all rows in the table
DeleteMany	2	Delete multiple rows by key values

Single row (Delete)

{
    "OperationType": "Delete",
    "DeleteModel": {
        "KeyColumnName": "Oid",
        "KeyValue": "a1b2c3d4-e5f6-7890-abcd-ef1234567890"
    }
}

Multiple rows (DeleteMany)

{
    "OperationType": "DeleteMany",
    "DeleteManyModel": {
        "KeyColumnName": "Oid",
        "KeyValues": [
            "a1b2c3d4-0000-0000-0000-000000000001",
            "a1b2c3d4-0000-0000-0000-000000000002"
        ]
    }
}

All rows (DeleteAll)

{
    "OperationType": "DeleteAll"
}

---

Create Table

POST /api/v3/custom-tables/{tableName}

Creates a new custom table with the specified schema. If the table already exists, adds the new columns.

{
    "KeyColumnName": "Oid",
    "KeyDataTypeId": 9,
    "Columns": [
        { "ColumnName": "Name", "ColumnDataTypeId": 6 },
        { "ColumnName": "Price", "ColumnDataTypeId": 4 },
        { "ColumnName": "IsActive", "ColumnDataTypeId": 0 }
    ]
}

---

Get Row Values

GET /api/v3/custom-tables/{tableName}/rows/values

Returns all rows in the table. Each row includes the KeyColumnName, KeyValue, and a Columns array:

[
    {
        "TableName": "ProductCatalog",
        "KeyValue": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
        "KeyColumnName": "Oid",
        "KeyDataTypeId": 9,
        "Columns": [
            { "ColumnName": "Name", "ColumnDataTypeId": 6, "Value": "Product A" },
            { "ColumnName": "Price", "ColumnDataTypeId": 4, "Value": 29.99 }
        ]
    }
]

---

Reading Data via Queries

You can also read custom table data using Queries (created in Maintenance → Queries). When writing SQL queries that reference custom tables, use CustomTable as the namespace (schema context).

The actual database schema is [customtables], so the table is accessible as [customtables].[YourTableName] in SQL.

Example query:

SELECT Oid, Name, Price, IsActive
FROM [customtables].[ProductCatalog]
WHERE IsActive = 1
ORDER BY Name

note

Queries must be created with the namespace set to CustomTable in the query configuration to resolve the correct schema context at runtime.
