Azure AD Blocker

Azure Portal Configuration​

Using Microsoft Entra ID it is necessary to create a app registration to enable Integration authentication with AD allowing to update users:

Create New App Registration​

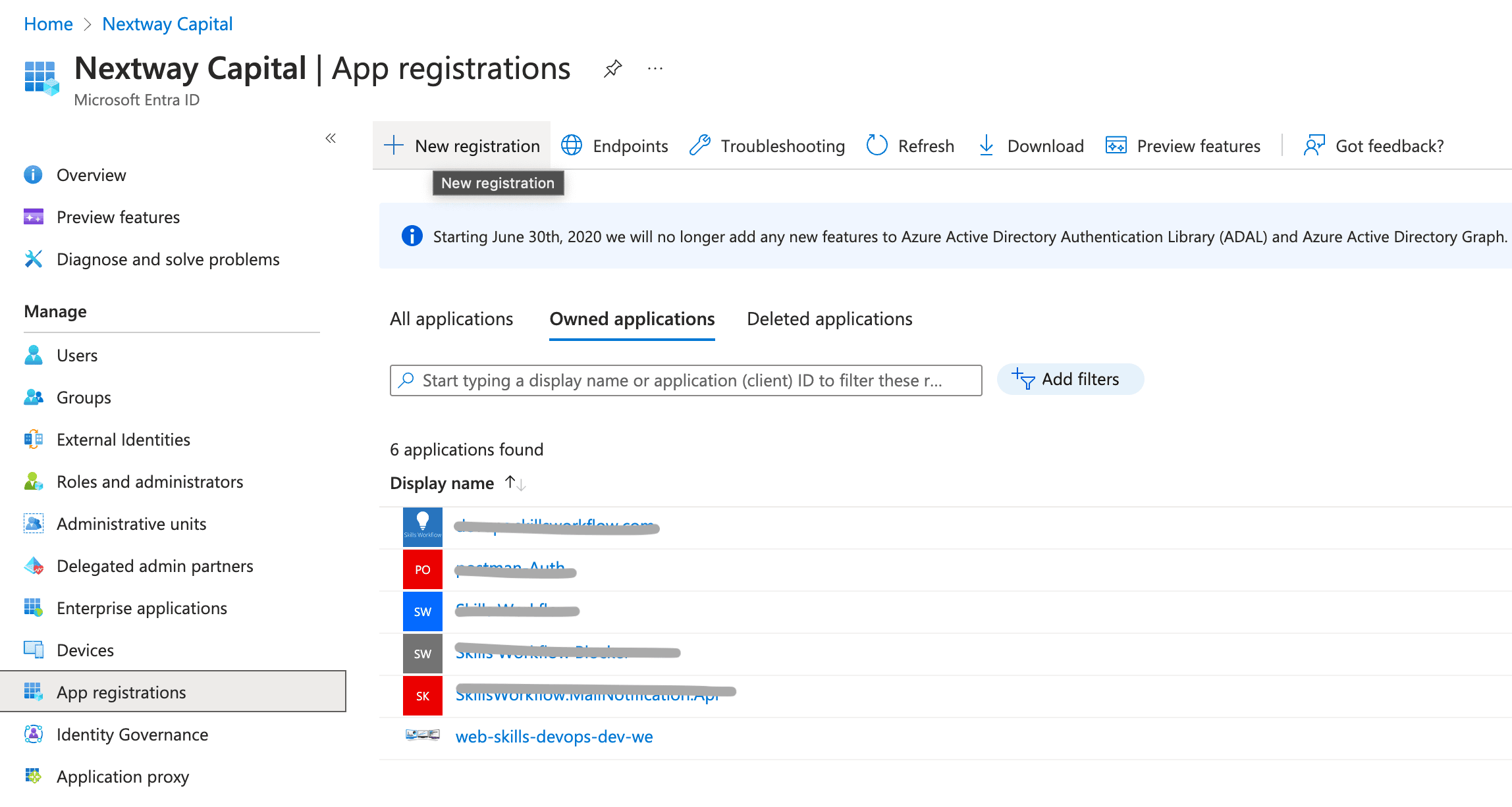

  • Navigate to App Registration
  • Press New Registration
  • Set name as Shown Below
  • Press Register

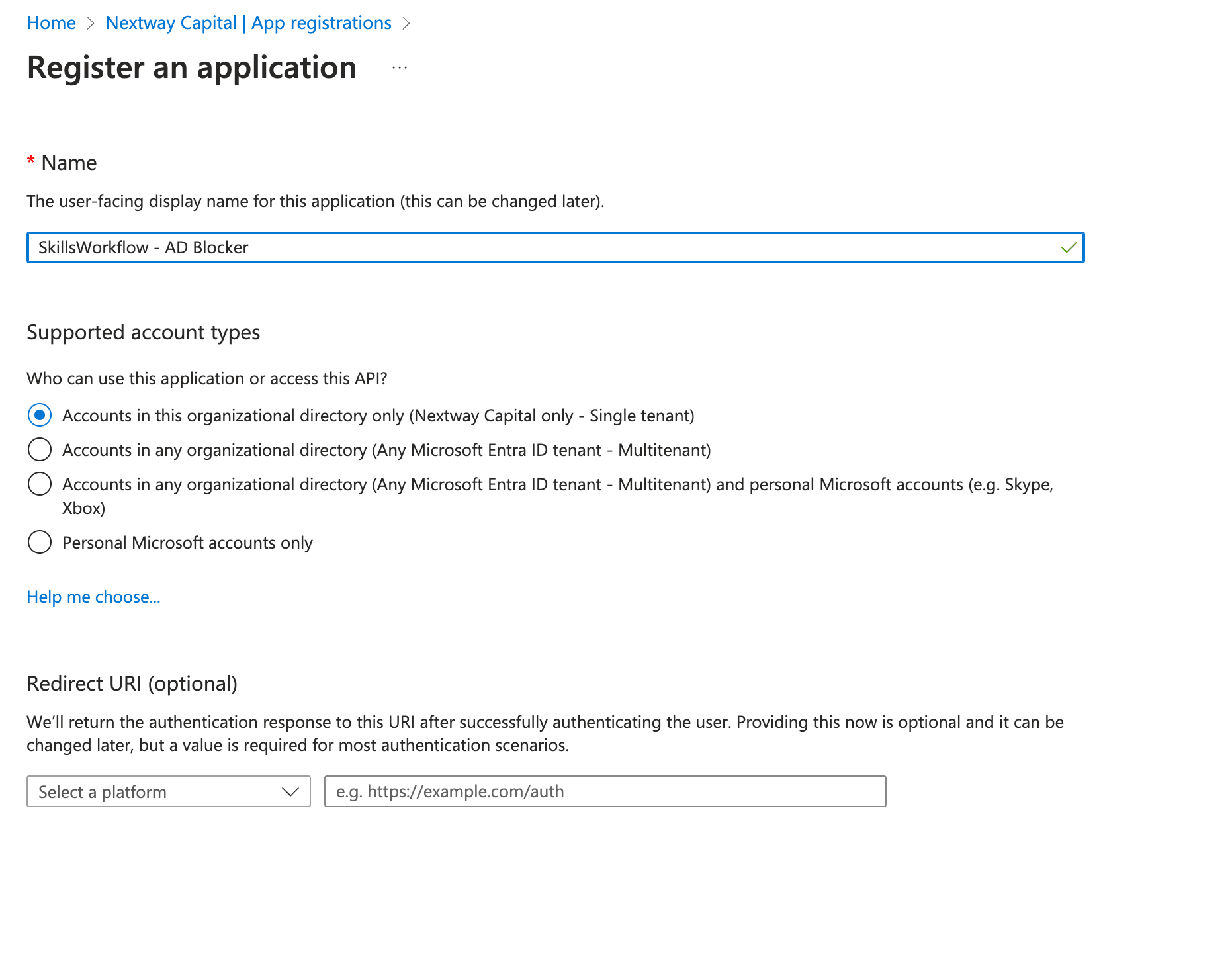

App Registration

Register

Api Permissions for Graph Api​

  • Navigate to Api permissions
  • Add the following permission for Graph Api:
    • User.ManageIdentities.All
    • User.ReadWrite.All
  • Grant admin consent for "Tenant Name"

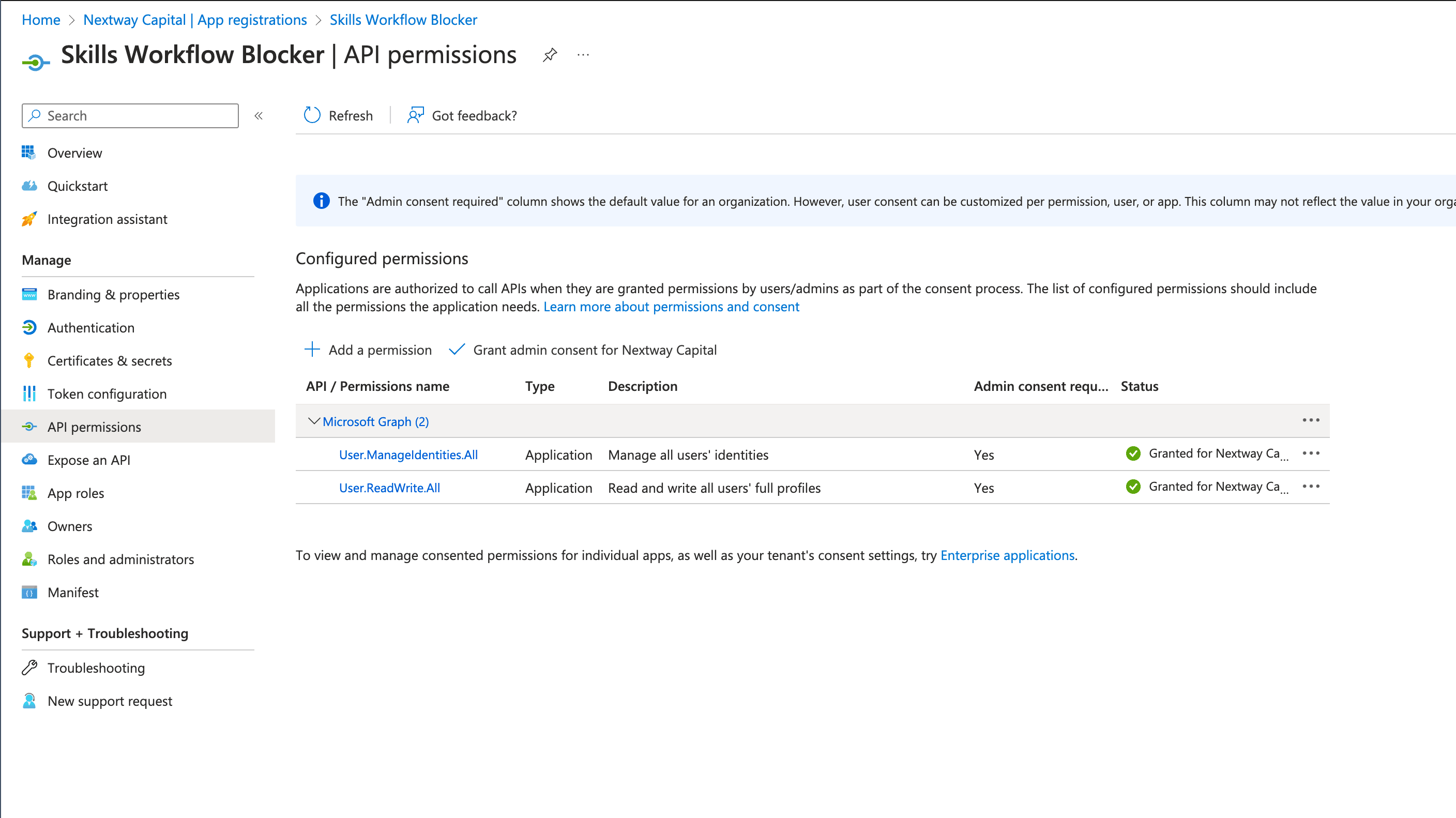

Api Permissions

Note that all the permissions should have a green Status.

Client Secret​

  • Navigate to Certificates & secrets
  • Navigate to Client Secrets tab
  • Add new Client Secret with the greatest expiration date

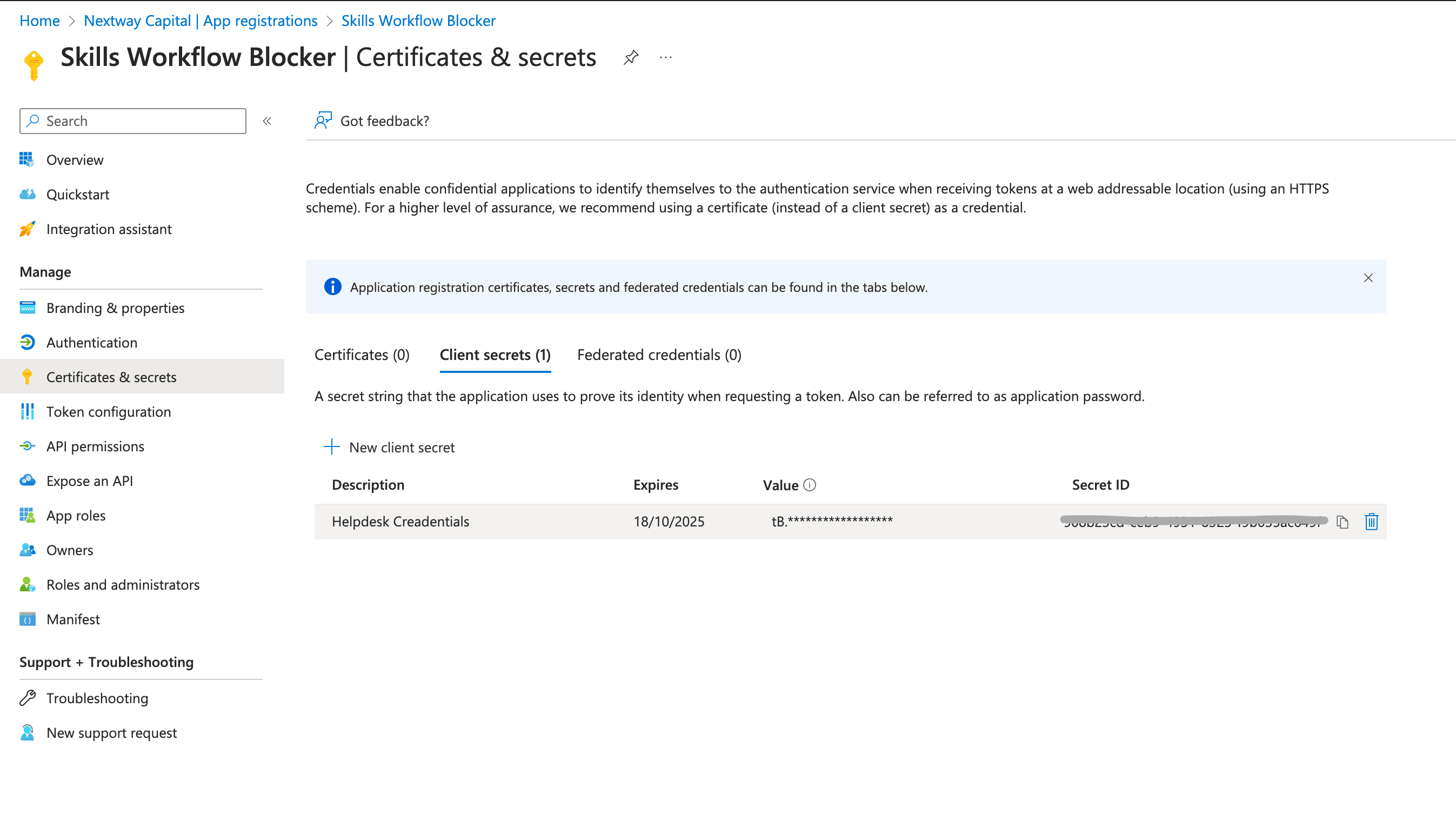

Client Secret

Copy right after creation the value key as it only shows one time

Definitions​

The creation of the App Registration should have a combination of the following:

  • TenantID
  • ClientId
  • Client Secret (created on step above)

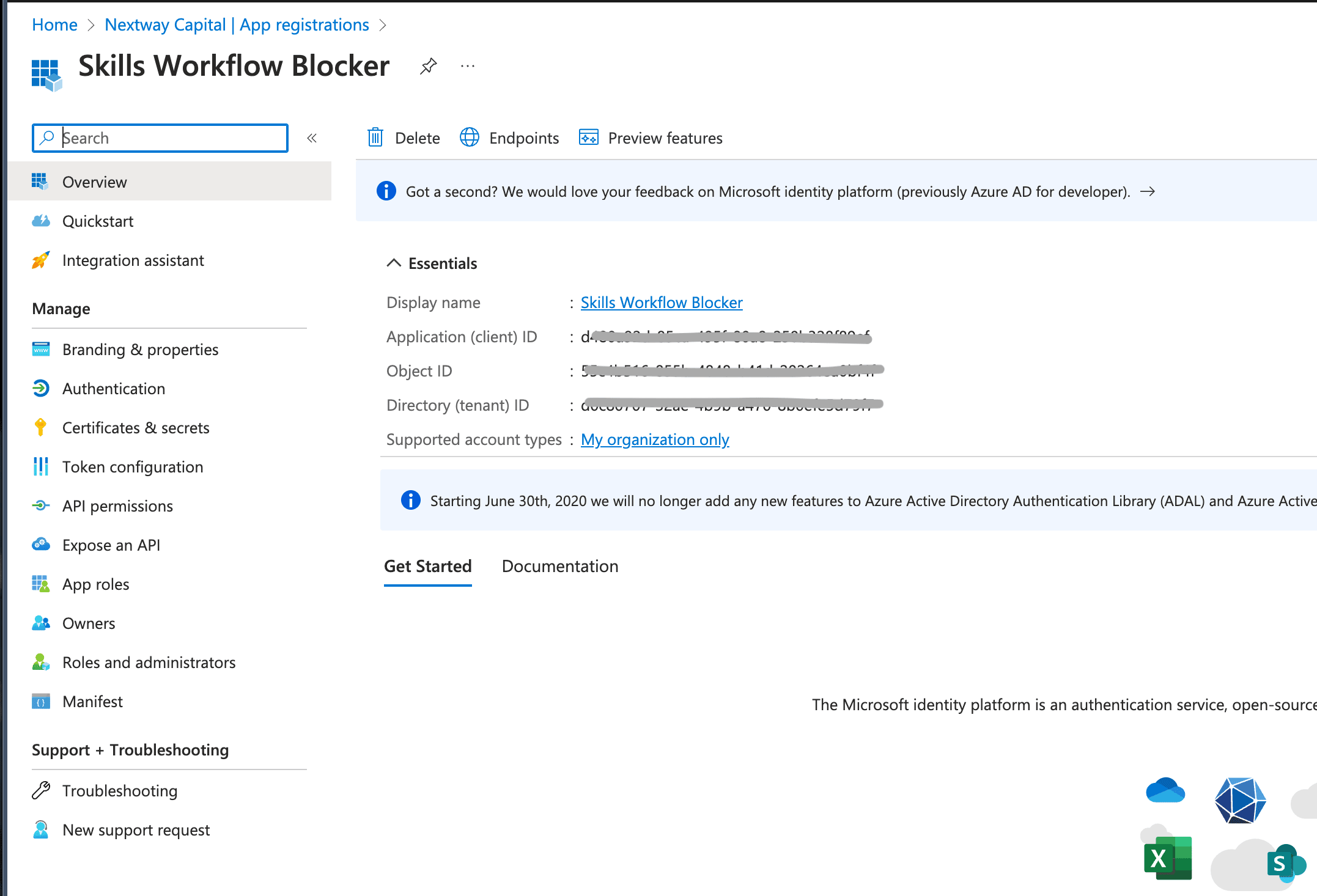

Definition

Installation​

To Install the Azure AD Blocker integration please go to the Marketplace and install the Azure AD Blocker Package

Package Content​

The package consists in the following elements

  • 2 Automations
  • 1 Query
  • 1 Webhook

Configuration​

In both Automations is necessary to set the Azure AD parameters obtained in the AzureAdAuthentication Action:

  • tenantId
  • clientId
  • clientSecret
